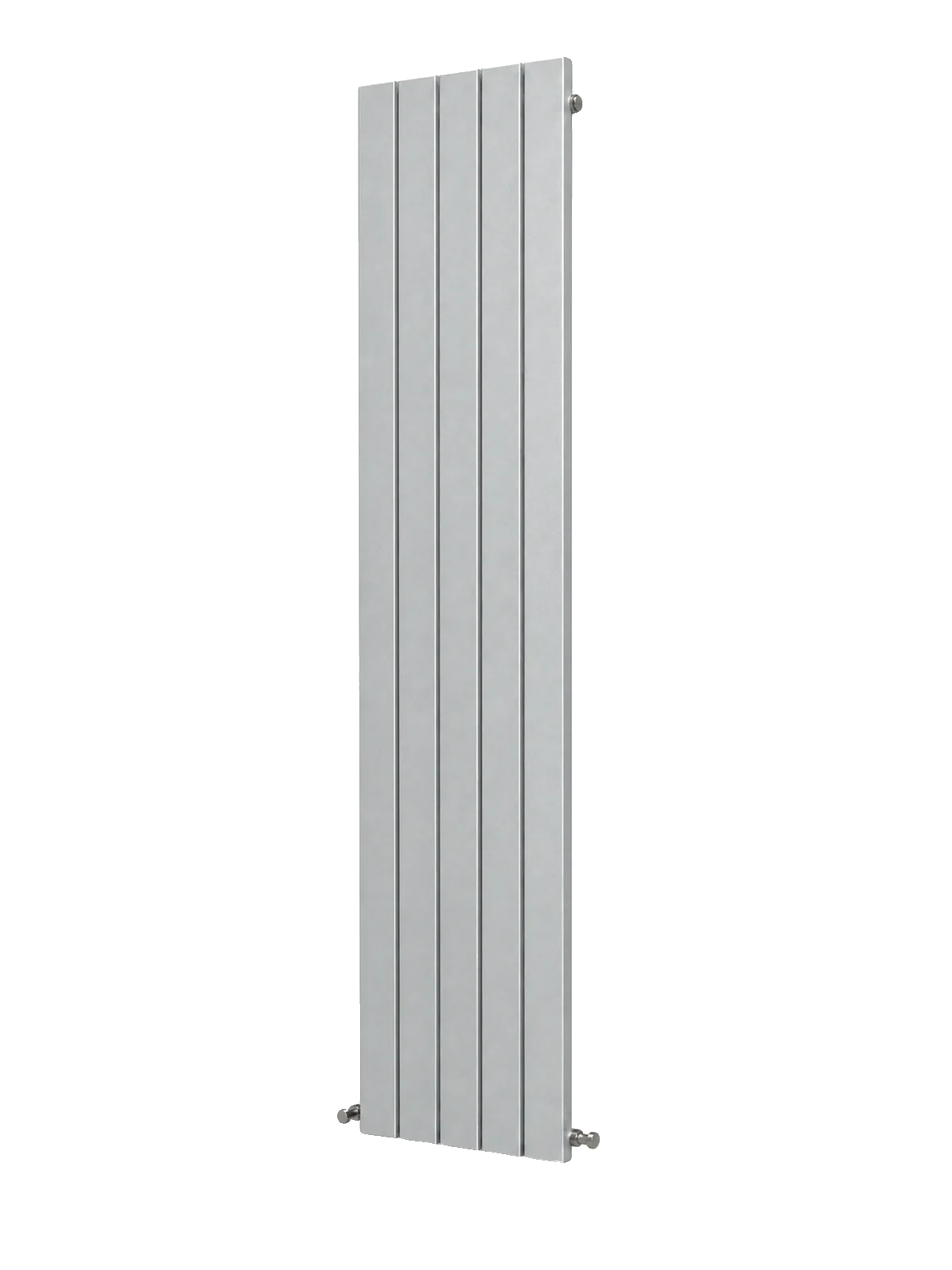

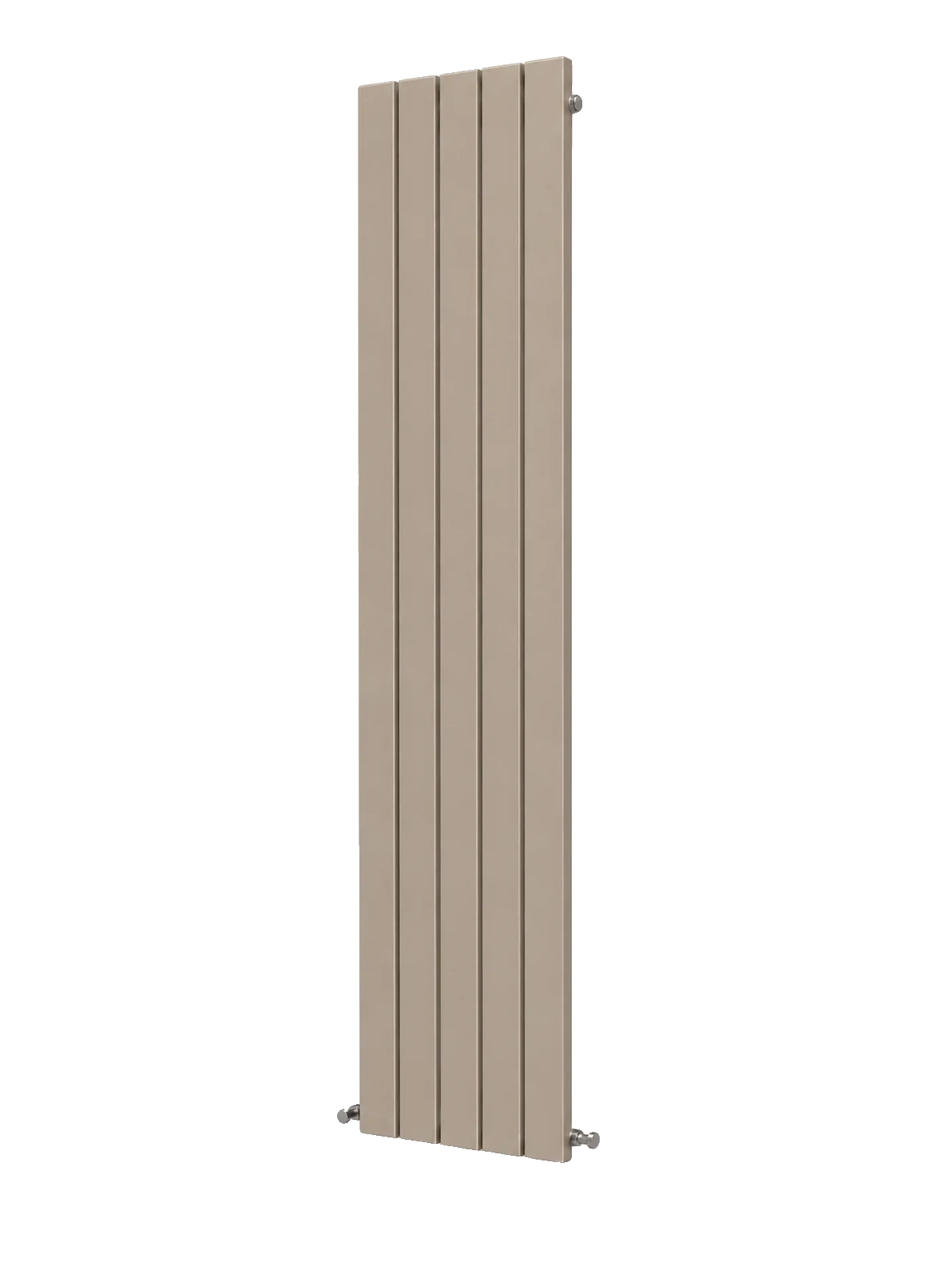

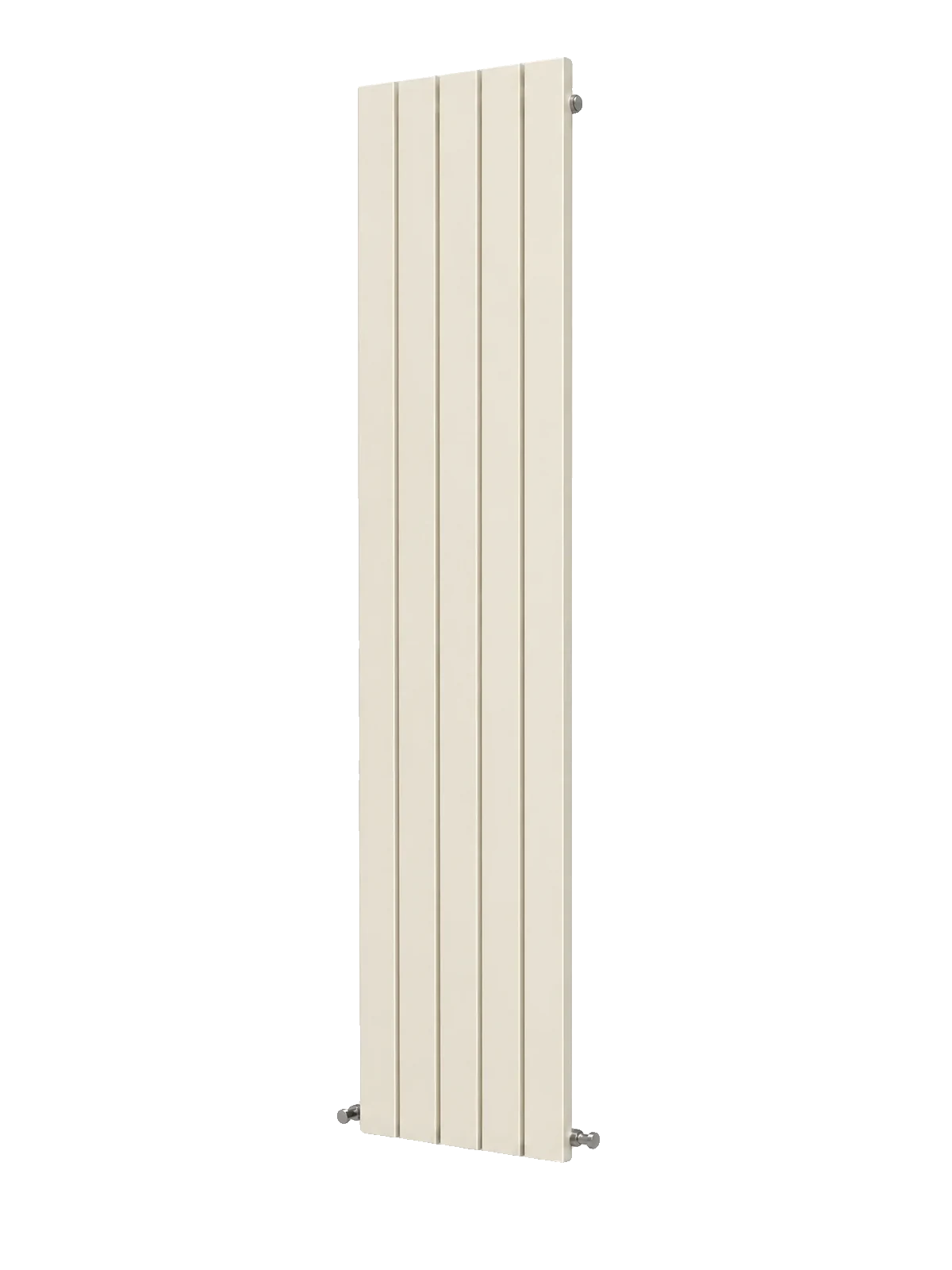

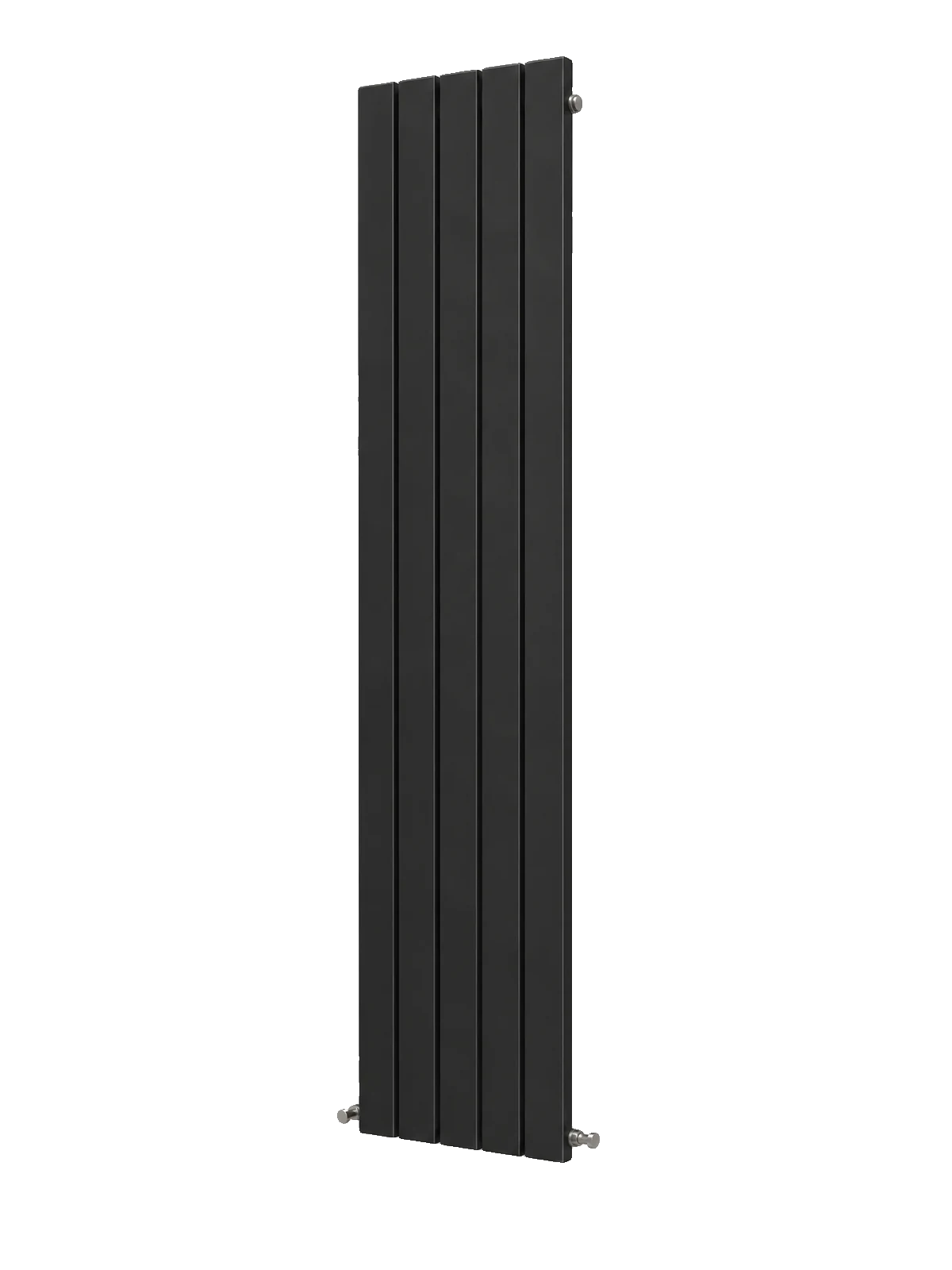

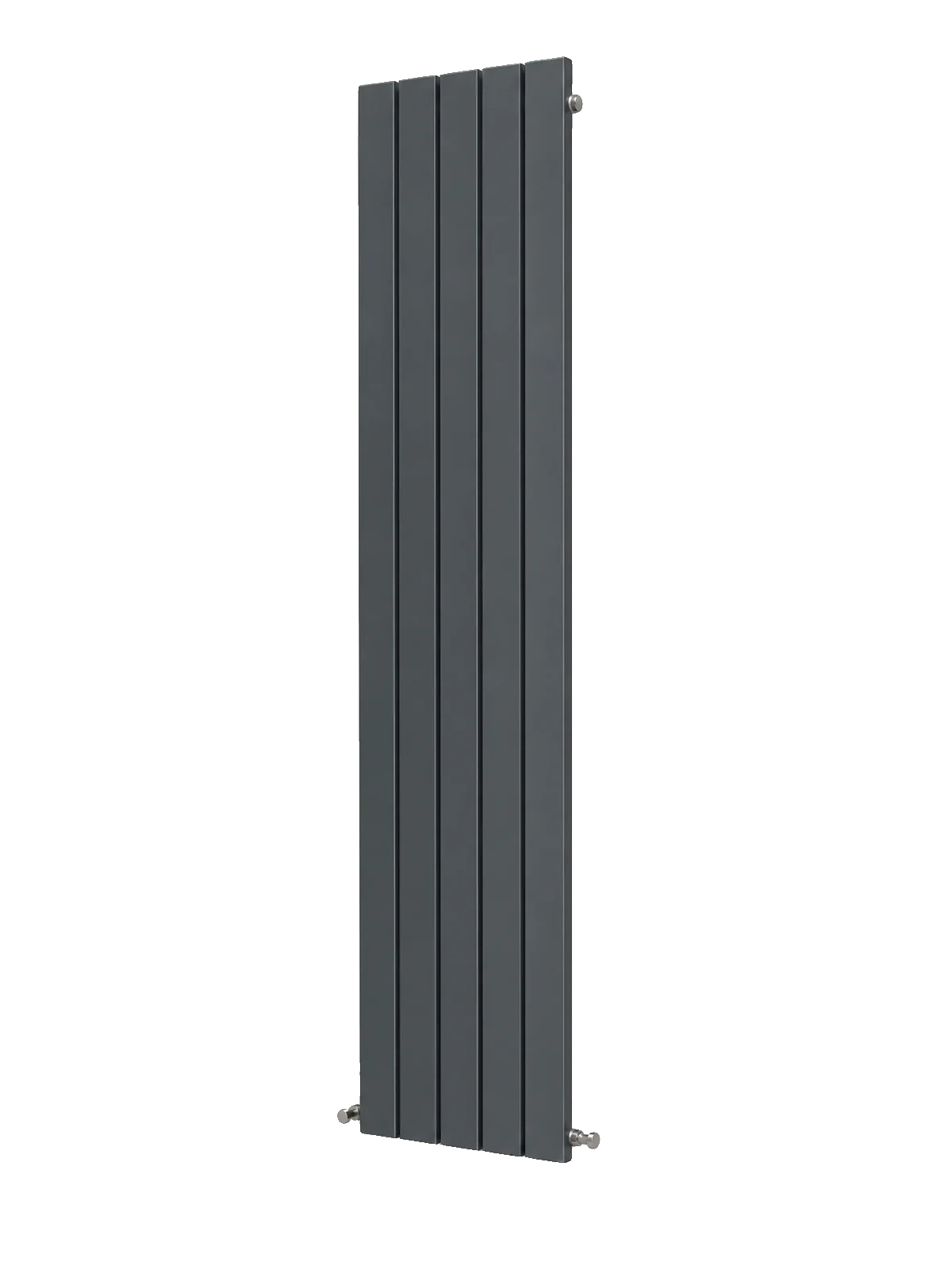

NOTA FITLINE Aluminium Decorative Radiator

FITLINE, distinguished by its slim design, is a special model created outside conventional radiator designs, suited to the new generation and in tune with modern times. Without compromising on aesthetics, it delivers high heat with an elegant form, making a difference with a design beyond the ordinary.

Section width: 10 cm
Section depth: 5.5 cm

Slim design
Delivers high heat
Unconventional design

FITLINE

FITLINE technical specifications

∆t50 · EN 442

Model	Height	Centres	Width	Water Capacity	Operating Pressure	Heat Output ∆t50
	mm	mm	mm	L	bar	W/section	kcal/section
FITLINE 1600	1600	1470	100	0,50	6	183	157
FITLINE 1800	1800	1670	100	0,55	6	206	177
FITLINE 2000	2000	1870	100	0,62	6	229	197

Scroll the table sideways →

* Heat output values provided by the Politecnico di Milano heat laboratory according to EN 442.
* EN 442 (75 °C – 65 °C water inlet/outlet, 20 °C ambient temperature).
